LINE FILTERS

LINE FILTERS Manufacturers in Ahmedabad

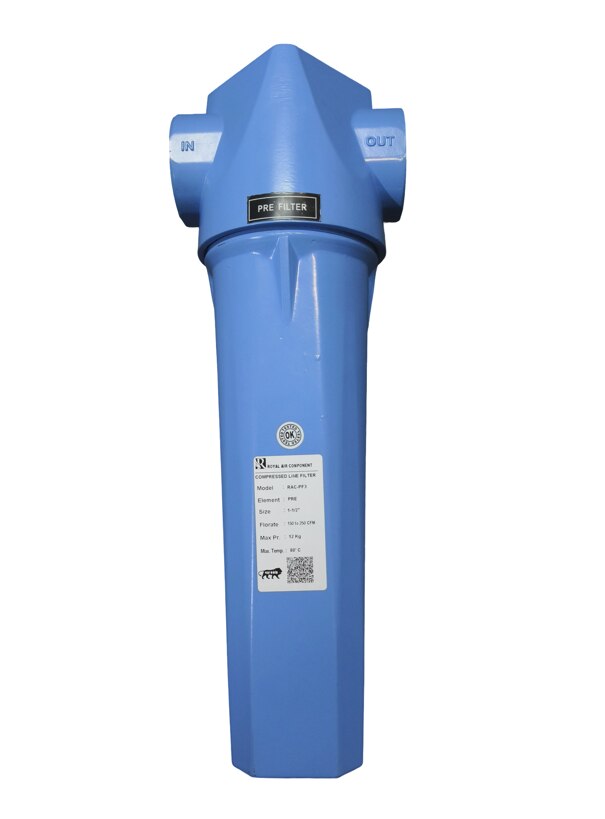

LINE FILTERS (PRE FILTER, AFTER FILTER, CARBON FILTER)

We are also supply in Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal

A Line Filter (also called an Air Compressor Filter) is an essential component used to remove contaminants such as dust, oil mist, and moisture from compressed air, ensuring clean and dry air for industrial applications.

1. Material & Construction:

Housing Material: Aluminum, Stainless Steel, or Carbon Steel (for high pressure)

Filter Element: High-efficiency fiberglass, activated carbon, or sintered bronze

Sealing Material: Nitrile Rubber (NBR) or Viton for leak-proof performance

Coating: Anti-corrosion powder coating for durability

2. Filtration Types & Efficiency:

🔹 Particulate Filter: Removes dust & solid particles (up to 1 micron)

🔹 Coalescing Filter: Removes oil mist & aerosols (up to 0.01 microns, 99.99% efficiency)

🔹 Activated Carbon Filter: Absorbs oil vapors & odors (up to 0.003 ppm residual oil content)

🔹 Water Separator: Removes bulk water & moisture (up to 99%)

3. Pressure & Flow Ratings:

Working Pressure: 7 to 16 bar (100 - 230 PSI)

Maximum Pressure: Up to 40 bar (for high-pressure models)

Flow Rate: 10 CFM to 5000 CFM (varies by size & application)

Pressure Drop: Initial <0.1 bar (depends on filter type)

1. Material & Construction:

Material: High-grade forged brass (CW617N, C36000, or CZ121)

Finish: Nickel-plated or natural brass finish for corrosion resistance

Threads: Precision-cut BSP, NPT, or Metric threads

Angle Type: 90° Elbow (standard) or 45° Elbow (optional)

2. Pressure & Temperature Ratings:

Working Pressure: Up to 20 bar (290 PSI)

Maximum Pressure: Up to 40 bar (580 PSI) (heavy-duty models)

Operating Temperature: -20°C to +120°C

Leakproof Performance: Machined threads ensure tight sealing & zero leakage

3. Connection & Sizes:

Thread Type: Male x Female, Female x Female, Male x Male

Thread Standards: BSP (British Standard Pipe), NPT (National Pipe Thread)

Available Sizes:

✅ 1/8” BSP/NPT

✅ 1/4” BSP/NPT

✅ 3/8” BSP/NPT

✅ 1/2” BSP/NPT

✅ 3/4” BSP/NPT

✅ 1” BSP/NPT

4. Features & Benefits:

✅ Rust & Corrosion Resistant – Ideal for compressed air systems

✅ High Tensile Strength – Withstands high-pressure applications

✅ Smooth Inner Surface – Reduces pressure drop & enhances airflow efficiency

✅ Easy Installation & Maintenance – Threaded ends for quick connections

5. Compatibility & Applications:

Compatible with: Reciprocating & Screw Air Compressors

Used in: Pneumatic systems, air tools, industrial air pipelines

Fits Brands: Atlas Copco, Ingersoll Rand, Kaeser, ELGi, Sullair, etc.

6. Standards & Certifications:

ISO 9001 Certified manufacturing

Meets ASTM B124/B283 Standards for brass components

CE & RoHS Compliant
